Timing Belt With Attached Cleats
Timing Belt With Attached Cleats

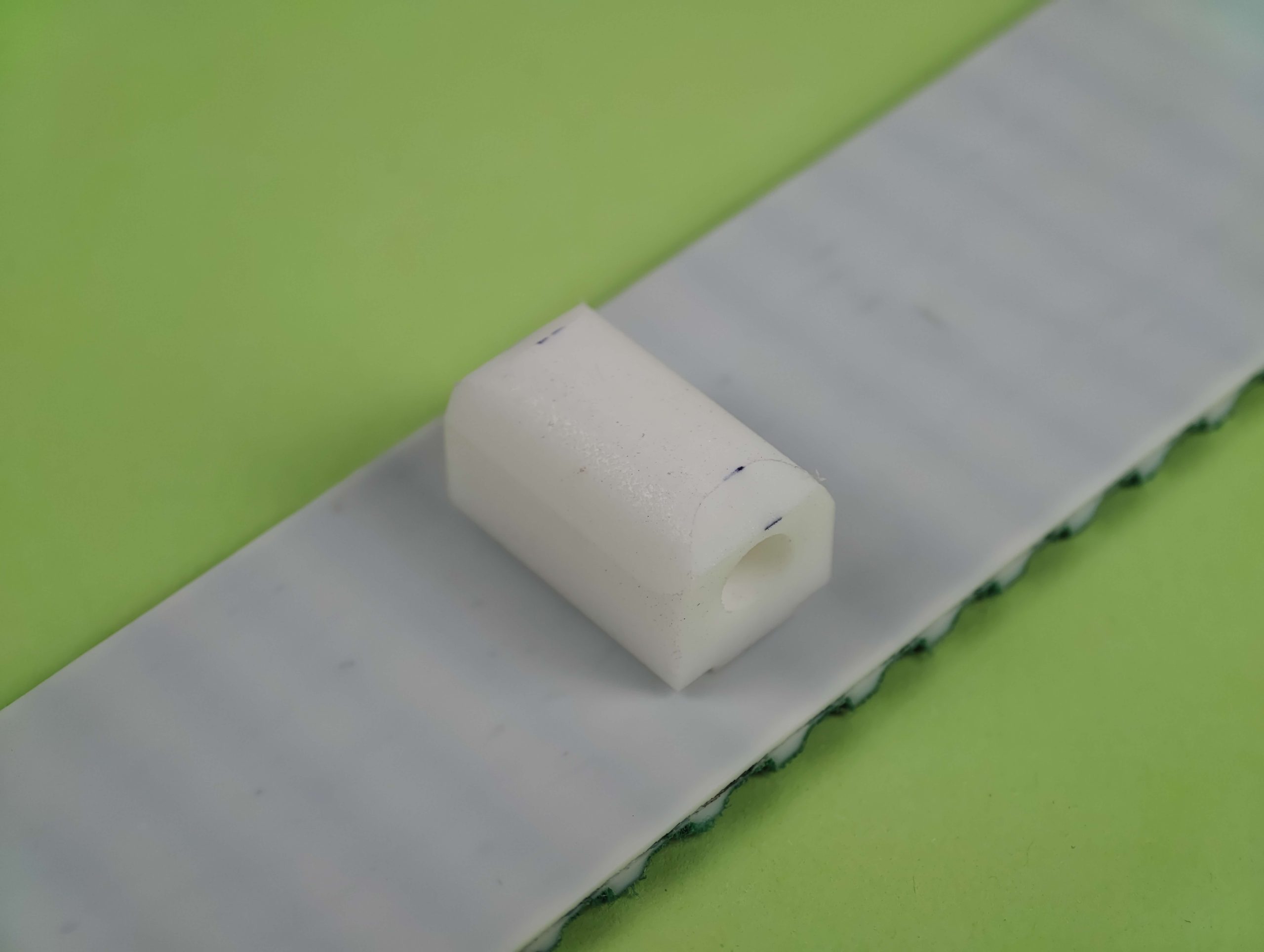

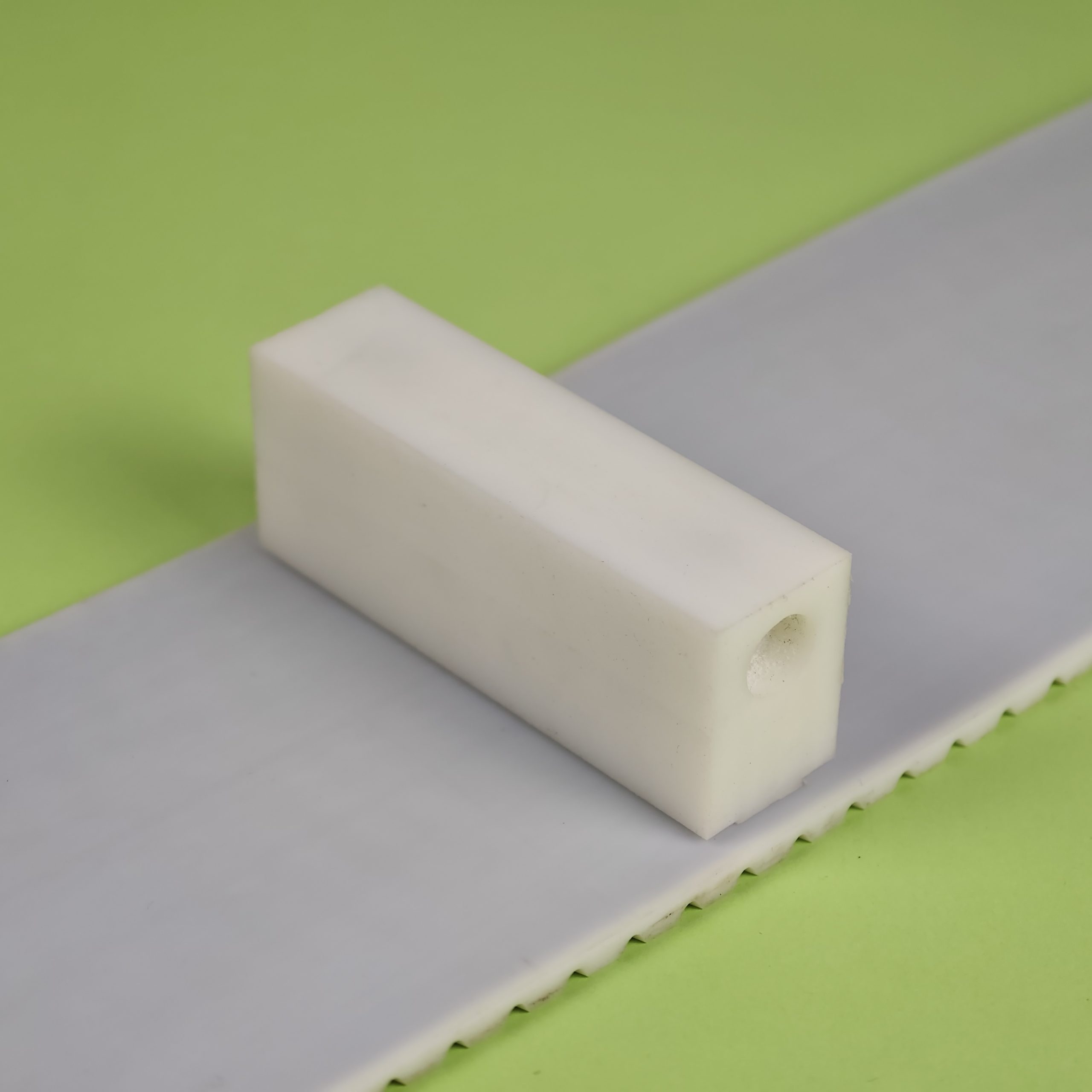

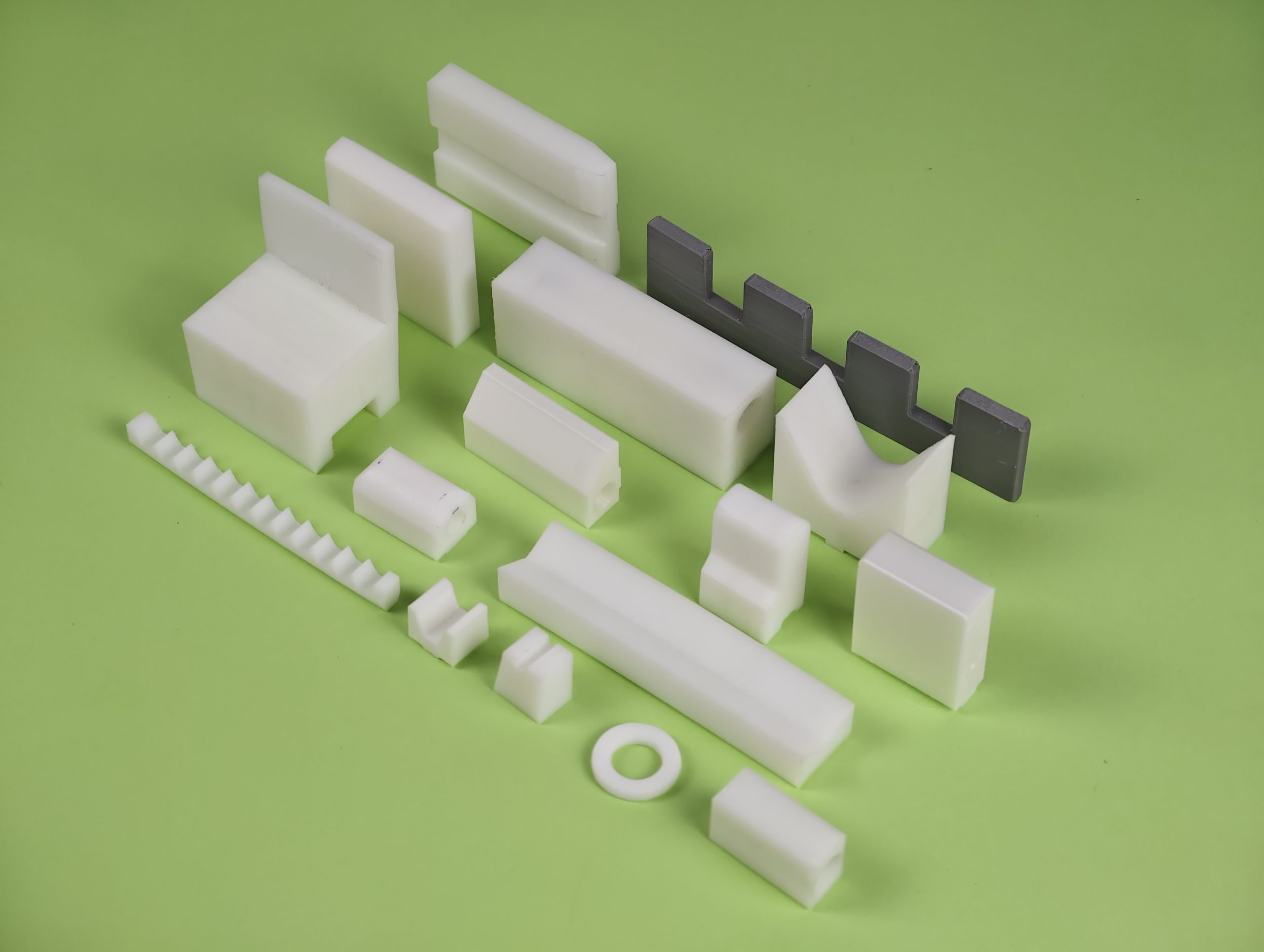

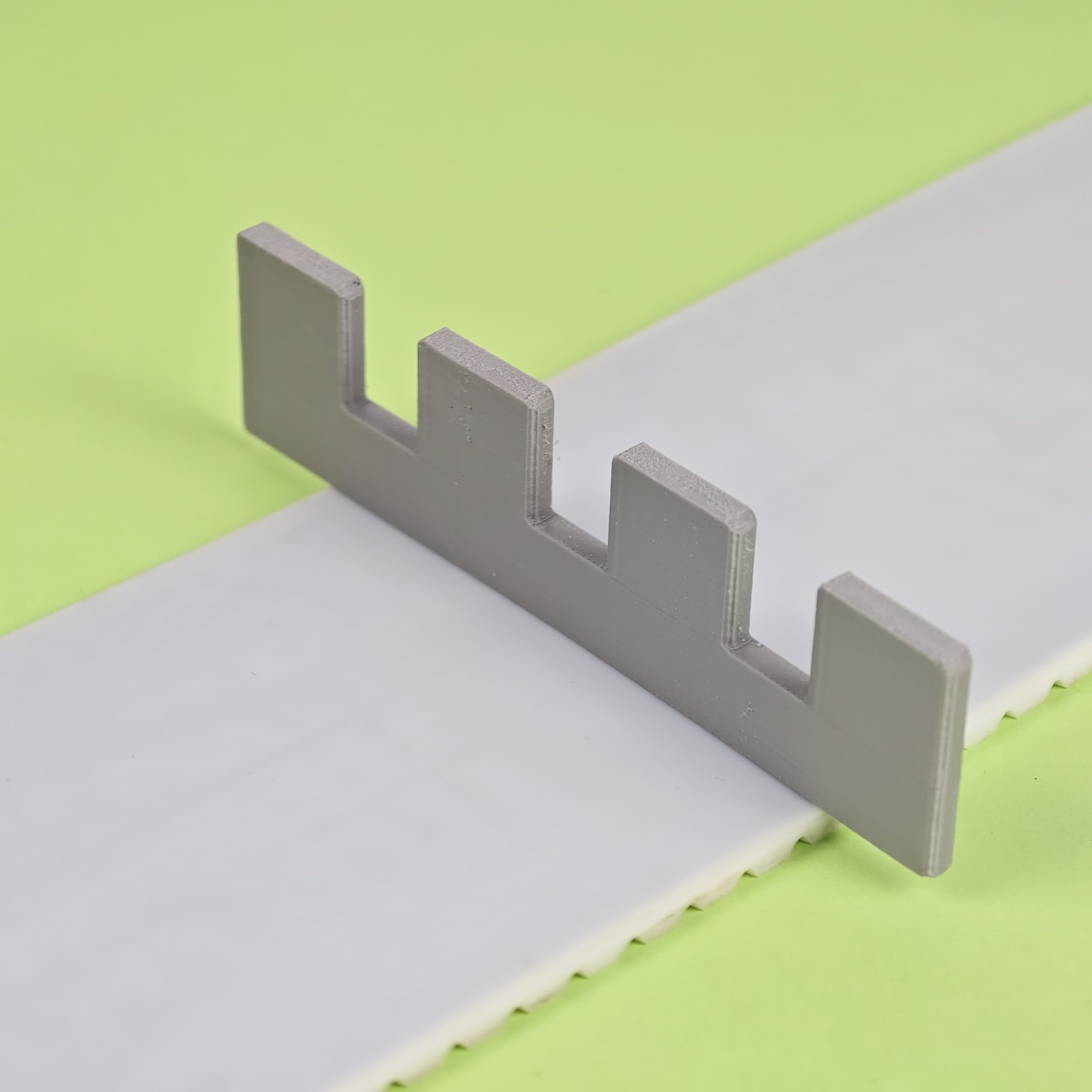

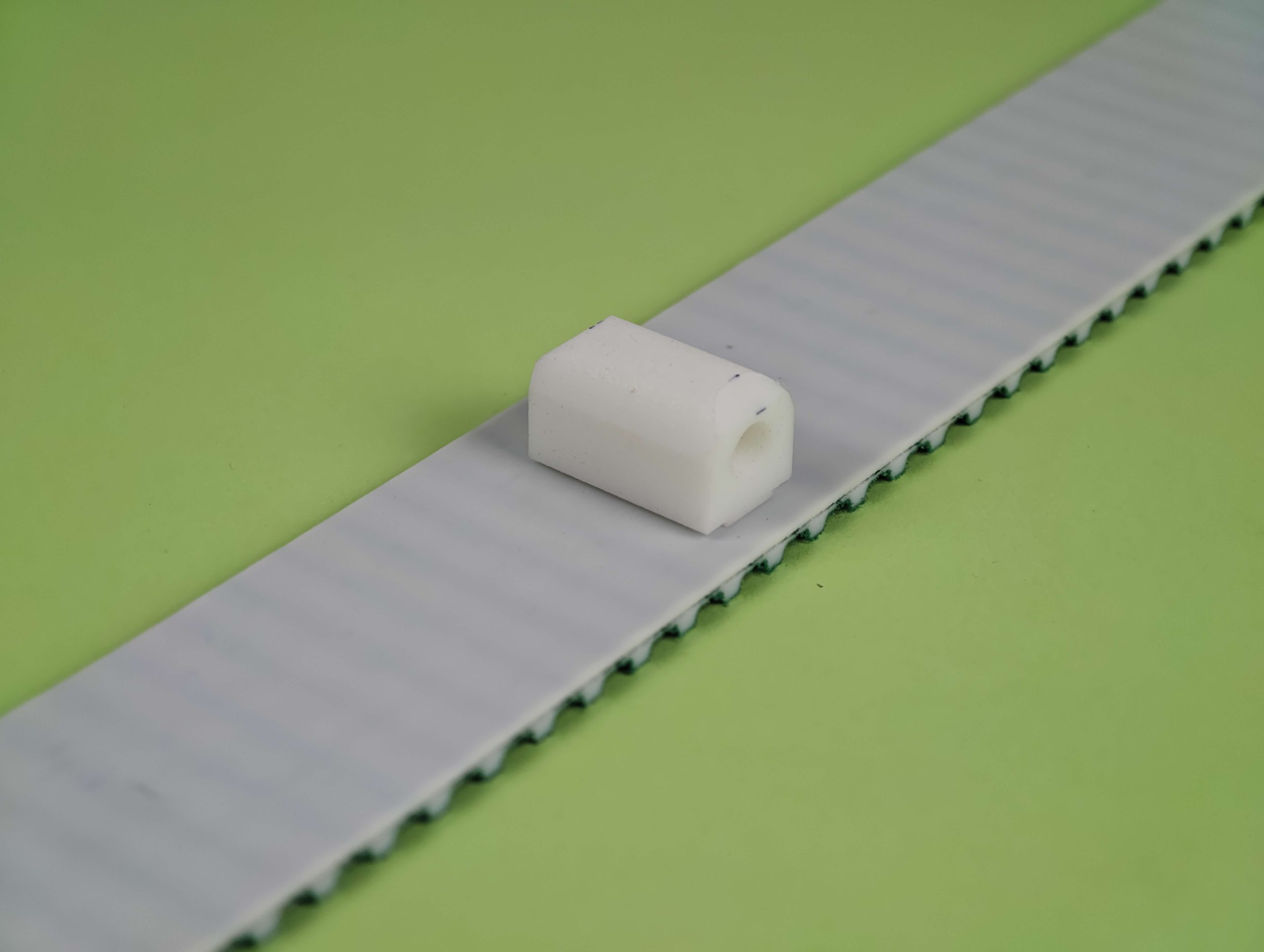

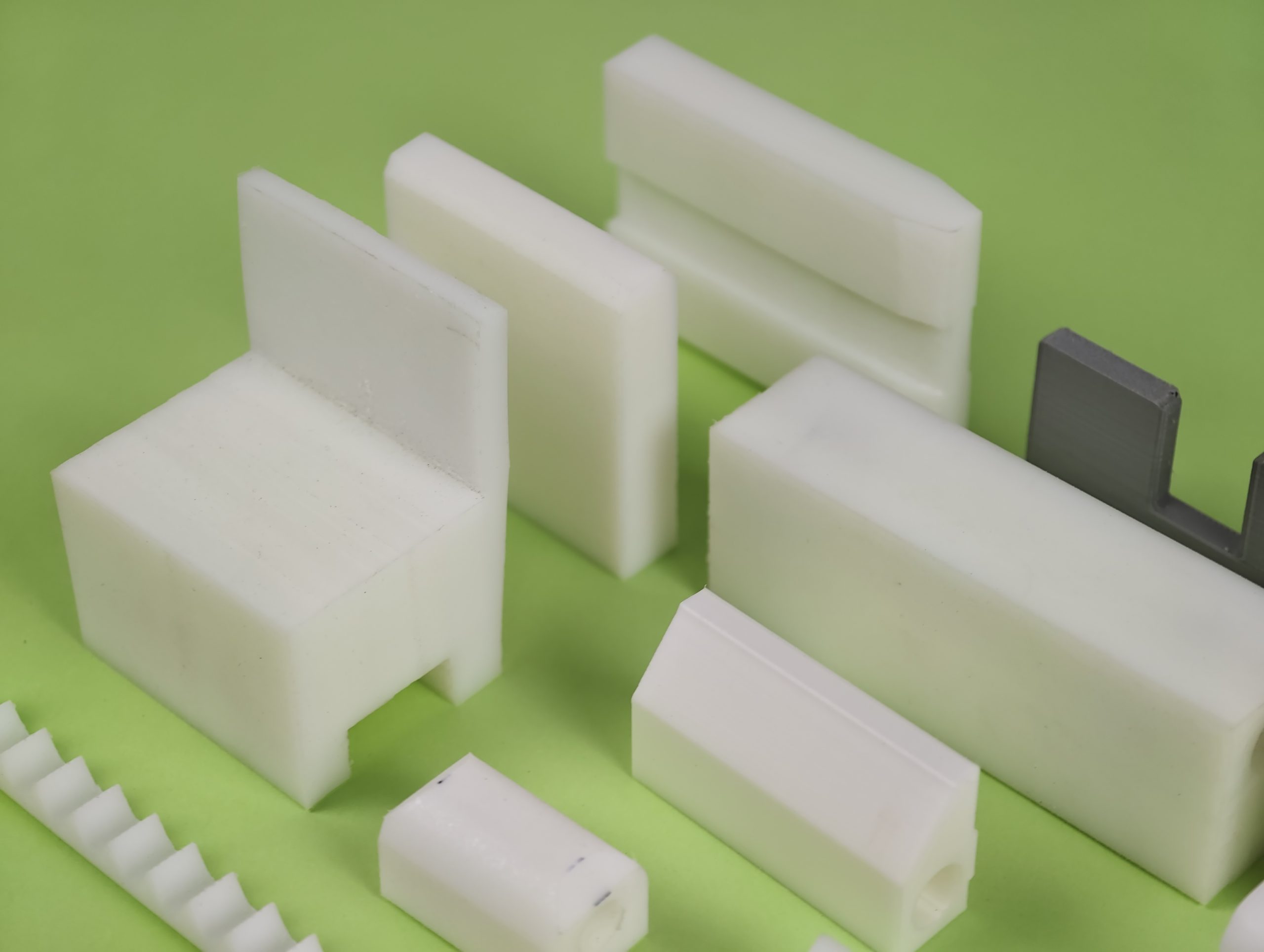

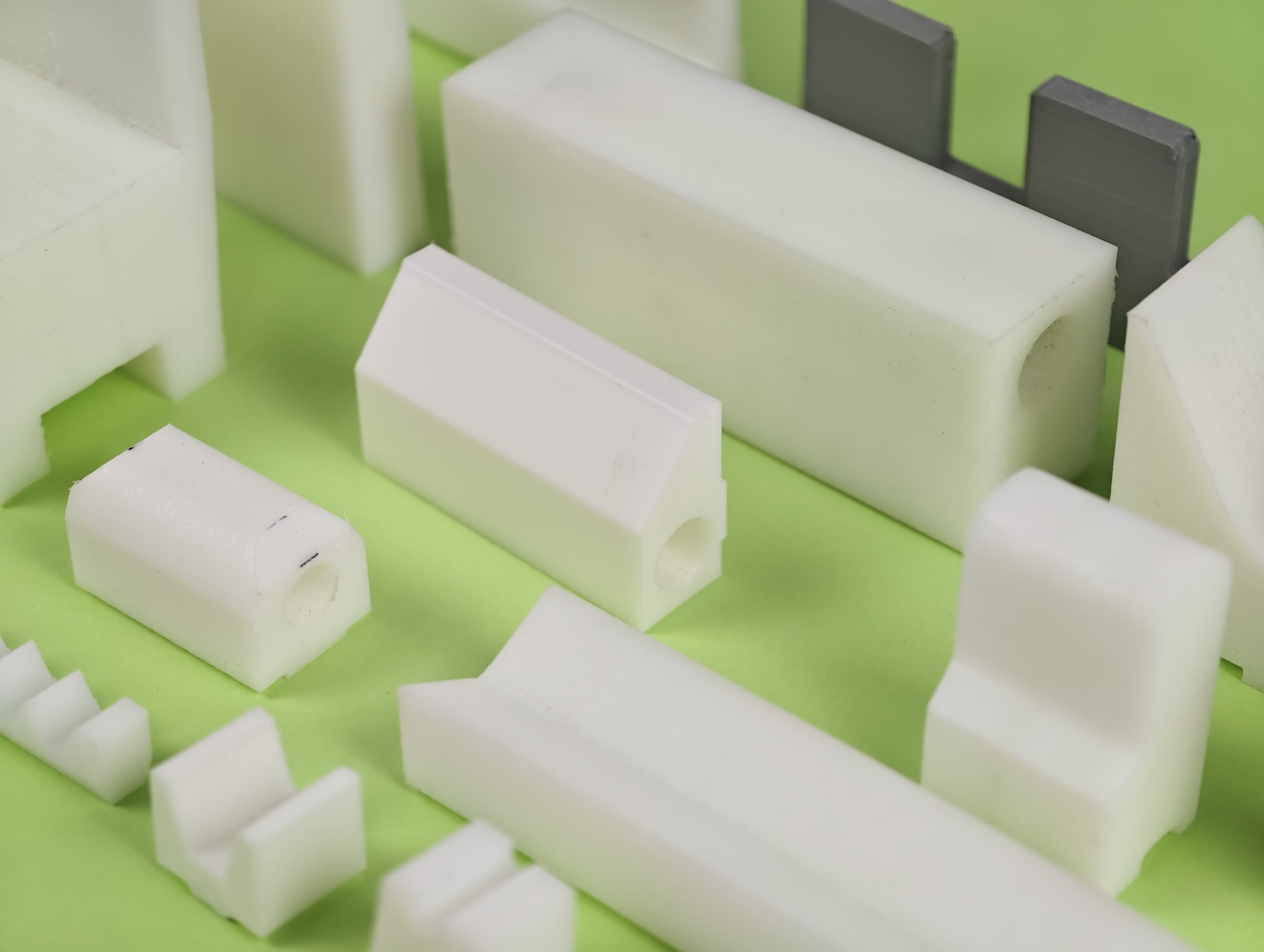

· Variety of Cleats on the back of belts is possible for various conveying applications.
· Ensure the maximum resistance, or from specialized materials.
· The cleats applied with the proven technology form a single body with the belt and guarantee the maximum resistance during the operating cycle.
· The ideal solution for conveying of products requiring precision, high operating speed and low noise.
Product Details
Material
Polyurethane
Polyurethane with metal nut
Nylon
Â
Â
Â
Â
Position
The location can correspond to either the teeth or the gaps between the teeth. It is recommended to select a stop pitch equal to the belt pitch. This minimizes the effect of tolerances on the overall belt length.
Note that positioning corresponding to the teeth maximizes belt flexibility.

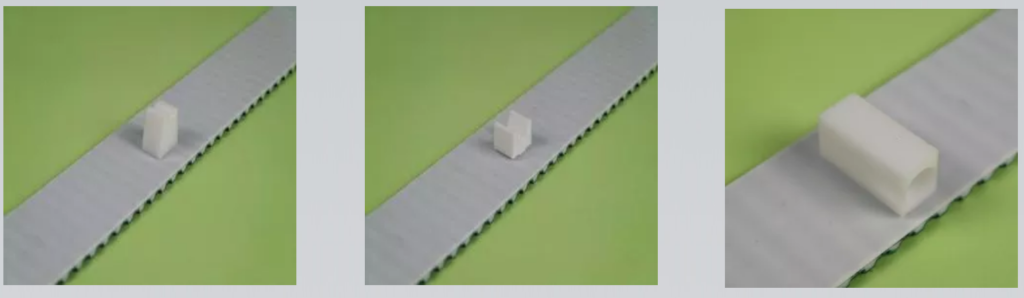

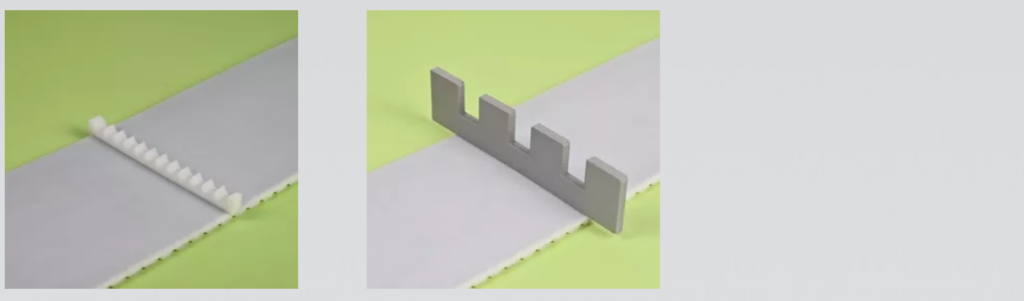

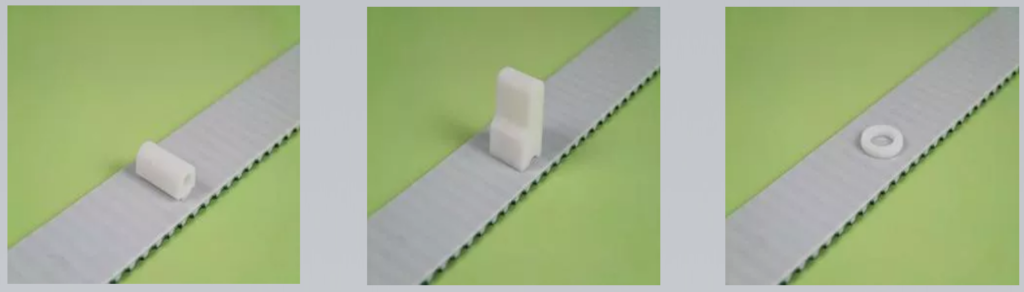

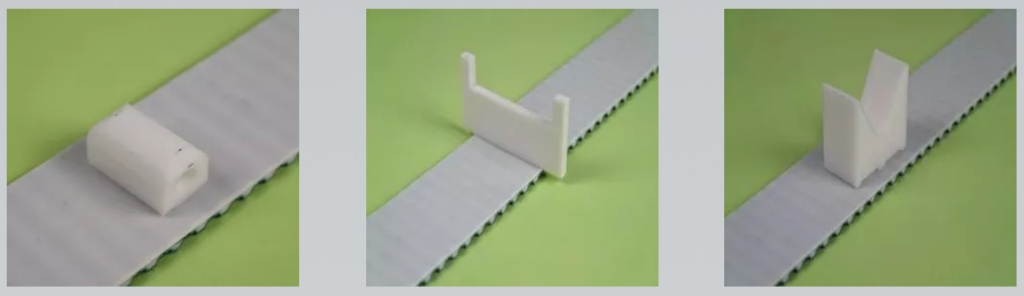

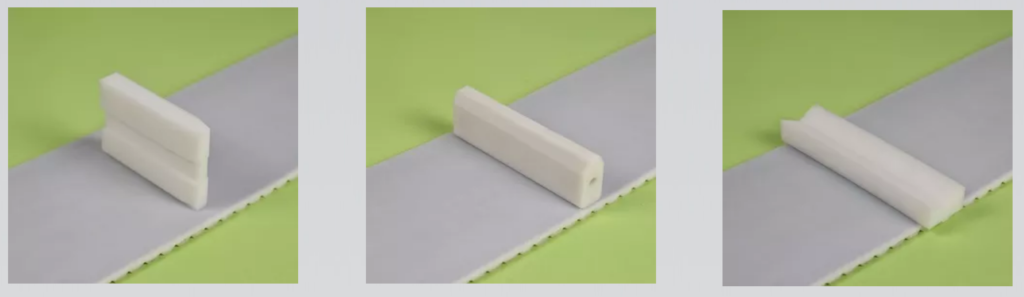

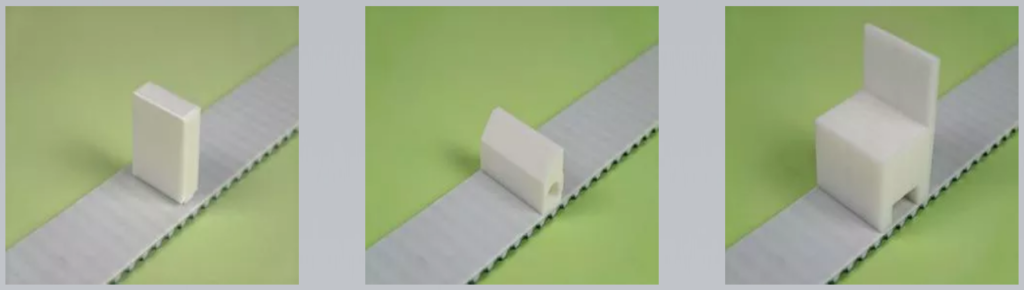

Type of Cleats
